Description
High light
250 Watt Output 12 Volt DC Input
Fanless design, 100% silent
Solid Polymer Caps on the PCBA, Long life.
Perfect DC PSU for mini ITX Motherboards
Description:
100% brand new and high quality
Size (L*W*H): 154mm*35mm*10mm(approx)
Adopt industrial solid capacitor, ideal for being used in harsh evironment
High performance with high heat-stand feature, more reliable
Without fan for 100% mute working
Compact design, special for mini-itx and 1U case
Modules can reach 250W, and it must be accompanied by the power adapter
100% brand new and high quality
Size (L*W*H): 154mm*35mm*10mm(approx)
Adopt industrial solid capacitor, ideal for being used in harsh evironment
High performance with high heat-stand feature, more reliable
Without fan for 100% mute working
Compact design, special for mini-itx and 1U case
Modules can reach 250W, and it must be accompanied by the power adapter
Specifications:
Input voltage: +12V/DC(11.4-12.6V)
Input Current: Max. 21A
Output Power: 250W
Power Efficiency: > = 85%
Working temperature/humidity: 15℃ to 35℃ / 45%-75%
Reposition temperature//humidity: -40℃ to +70℃/ 10%-90%
Atmospheric pressure: 86Kpa—106Kpa
Input voltage: +12V/DC(11.4-12.6V)
Input Current: Max. 21A
Output Power: 250W
Power Efficiency: > = 85%
Working temperature/humidity: 15℃ to 35℃ / 45%-75%
Reposition temperature//humidity: -40℃ to +70℃/ 10%-90%
Atmospheric pressure: 86Kpa—106Kpa
Applications:
MINI computers, one computer, POS, digital set-top boxes, ITX chassis, network servers, advertising, banking terminals, etc.
MINI computers, one computer, POS, digital set-top boxes, ITX chassis, network servers, advertising, banking terminals, etc.
Package includes:

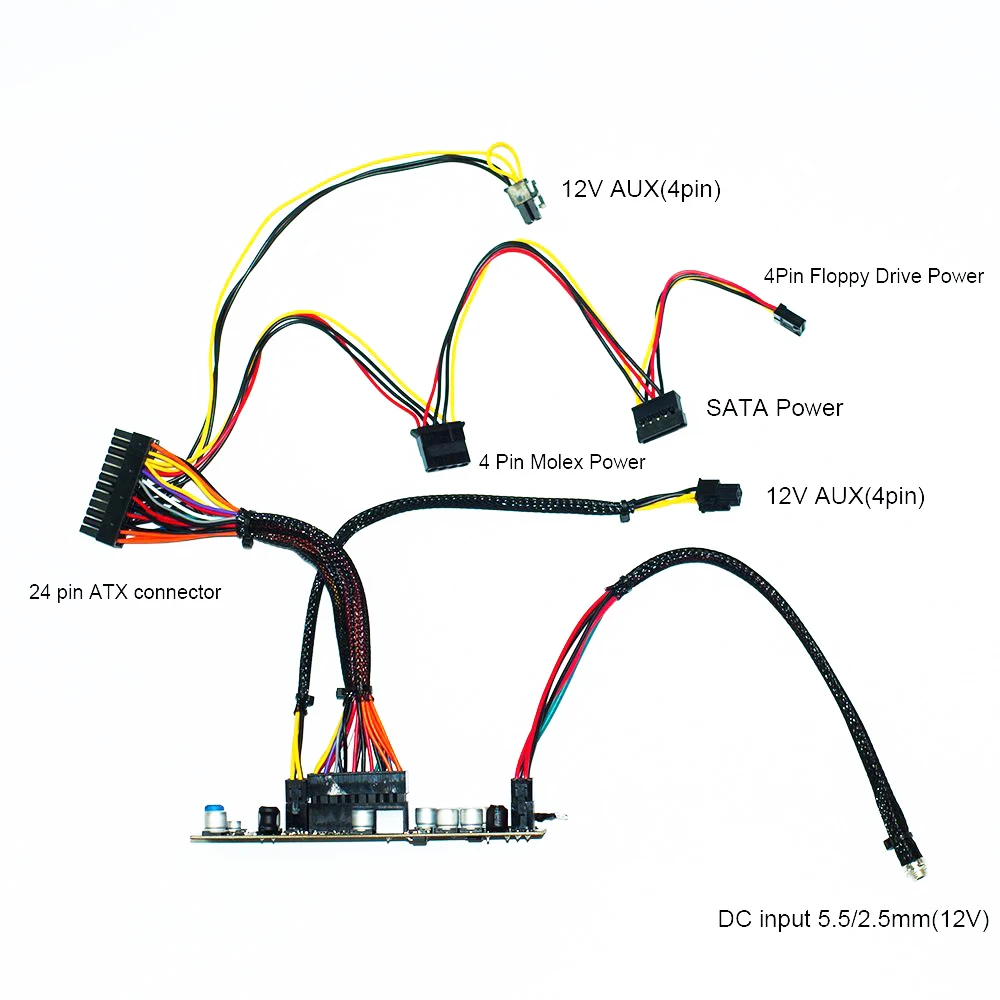

1 x DC-ATX 250W Module (with 3 cable)
1 x DC-ATX 250W Module (with 3 cable)

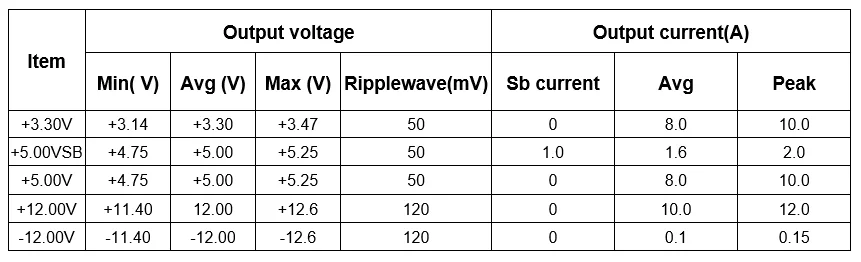

Five Groups of Power output:

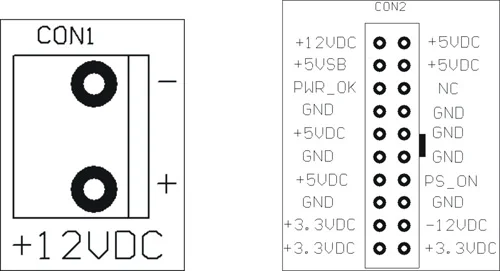

Input/output interface:
function （for+3.3V，+12V,+5.00V&+5.00VSB power output）
OCP： output shut down when output current reaches the peak point.
Short-circuit protection：output shut down when short-circuit.

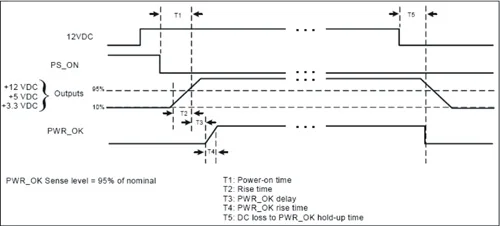

PSU timing sequence:
