Description
ROG Strix GeForce RTX™ 3080 Ti 12GB GDDR6X buffed-up design with chart-topping thermal performance
- NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
- 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
- 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.
- Axial-tech Fan Design has been tuned up with more fan blades and a reversed rotational direction for the center fan.
- 2.9-slot design expands cooling surface area compared to last gen for more thermal headroom than ever before.
- Super Alloy Power II includes premium alloy chokes, solid polymer capacitors, and an array of high-current power stages.
- GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.
Bus Standard
PCI Express 4.0
OpenGL
OpenGL®4.6
Video Memory
12GB GDDR6X
Engine Clock
OC mode : 1695 MHz (Boost Clock)
Gaming mode : 1665 MHz (Boost Clock)
Gaming mode : 1665 MHz (Boost Clock)
CUDA Core
10240
Memory Speed
19 Gbps
Memory Interface
384-bit
Resolution
Digital Max Resolution 7680 x 4320

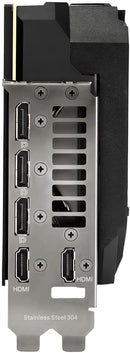

Interface
Yes x 2 (Native HDMI 2.1)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
No
Software
ASUS GPU Tweak II & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions
318.5 x 140.1 x 57.78 mm
12.53 x 5.51 x 2.27 inch
12.53 x 5.51 x 2.27 inch
Recommended PSU
850W
Power Connectors
3 x 8-pin
Slot
2.9 Slot
