Description
ROG Strix GeForce RTX™ 3080 White Edition with a white color scheme and chart-topping thermal performance.
- NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPU, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
- 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
- 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. Now with support for up to 8K resolution, these cores deliver a massive boost in game performance and all-new AI capabilities.
- OC edition: Boost clock 1935 MHz (OC mode)/1905 MHz (Gaming mode)
- A limited white edition for themed gaming rigs.
- Axial-tech fan design has been tuned up with more fan blades and a reversed rotational direction for the center fan.
- 2.9-slot design expands cooling surface area compared to last gen for more thermal headroom than ever before.
- Super Alloy Power II includes premium alloy chokes, solid polymer capacitors, and an array of high-current power stages.
- GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.
| GPU Model | NVIDIA GeForce RTX 3080 |
| Stream Processors | 8704 CUDA Cores |
| Boost Clock Speed | OC Mode: 1935 MHz Gaming Mode: 1905 MHz |
| Base Clock Speed | 1440 MHz |
| Interface | PCI Express 4.0 x16 |
| Supported APIs | DirectX: 12 OpenGL: 4.6 Vulkan |
Memory
| Memory Speed | 19 Gb/s |
| Memory Configuration | 10 GB |
| Memory Interface | GDDR6X |
| Memory Interface Width | 320-Bit |
| Memory Bandwidth | 760 GB/s |
Display Support

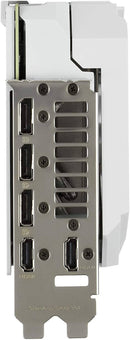

| Display Connectors | 3 x DisplayPort 1.4a 2 x HDMI 2.1 |
| Maximum Digital Resolution | 7680 x 4320 |
Power Requirements
| PCI Power Connectors | 3 x 8-Pin |
| Recommended System Power Requirement | 750 W |
Dimensions
| Height | 5.5" / 140.1 mm |
| Length | 12.5" / 318.5 mm |
| Width | Triple-Slot |
General
| Cooler Type | Open Fansink |
| Lighting | RGB LED |
Packaging Info
| Package Weight | 5.4 lb |
| Box Dimensions (LxWxH) | 16 x 9 x 3" |
