Description
- NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPU, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
- 2nd Generation RT Cores: Experience 2X the throughput of 1st Gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
- 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. Now with support for up to 8K resolution, these cores deliver a massive boost in game performance and all-new AI capabilities.
- Axial-Tech Fan Design has been newly tuned with a reversed central fan direction for less turbulence.
- 2.9-slot design expands cooling surface area compared to last gen for more thermal headroom than ever before.
- Super Alloy Power II includes premium alloy chokes, solid polymer capacitors, and an array of high-current power stages.
- GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.
Graphic Engine
NVIDIA® GeForce RTX™ 3090
Bus Standard
PCI Express 4.0
OpenGL
OpenGL®4.6
Video Memory
24GB GDDR6X
Engine Clock
OC Mode - 1725 MHz (Boost Clock)
Gaming Mode - 1695 MHz(Boost Clock)
Gaming Mode - 1695 MHz(Boost Clock)
CUDA Core
10496
Memory Speed
19.5 Gbps
Memory Interface
384-bit
Resolution
Digital Max Resolution 7680 x 4320

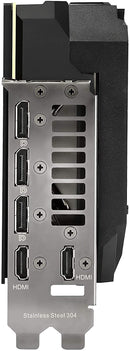

Interface
Yes x 2 (Native HDMI 2.1)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
Yes
Software
ASUS GPU Tweak II & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions
12.53 " x 5.51 " x 2.27 " Inch
31.85 x 14.01 x 5.78 Centimeter
31.85 x 14.01 x 5.78 Centimeter
Recommended PSU
850W
Power Connectors
3 x 8-pin
Slot
2.9 Slot
